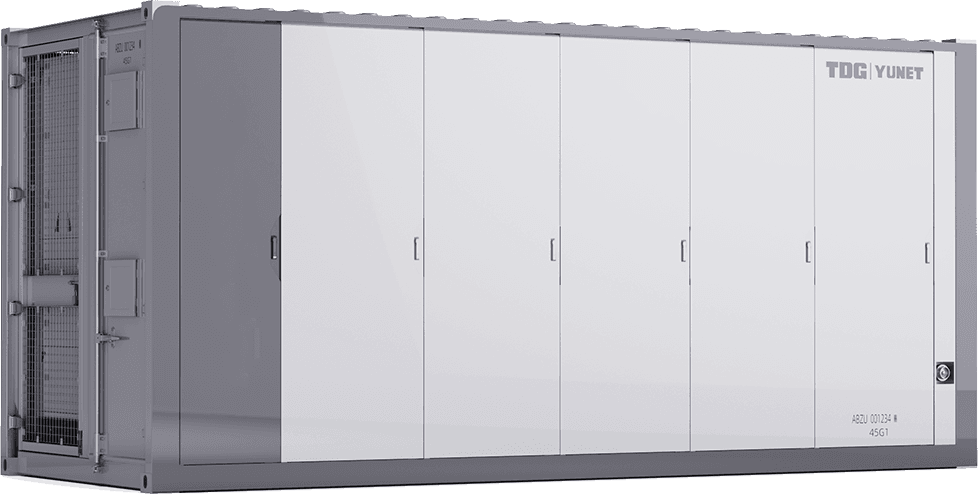

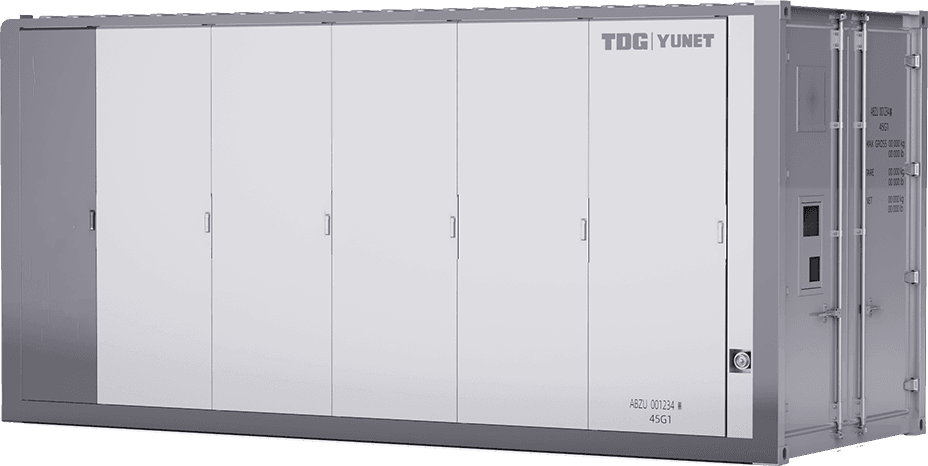

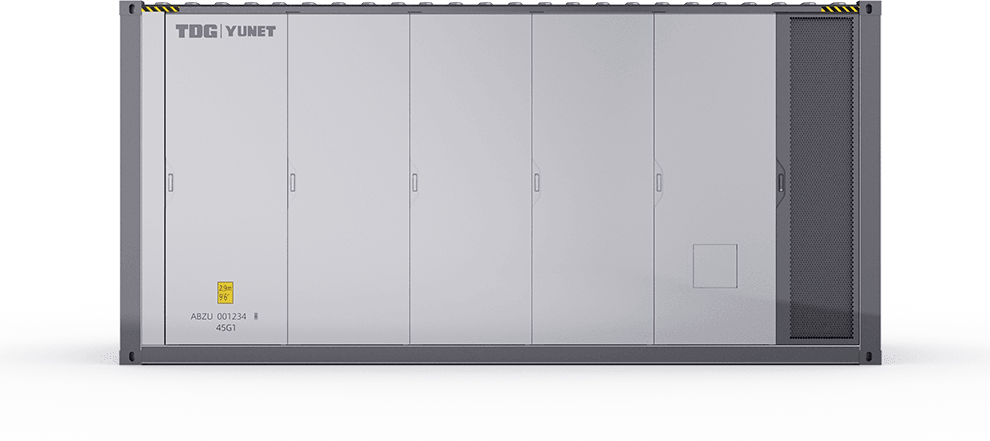

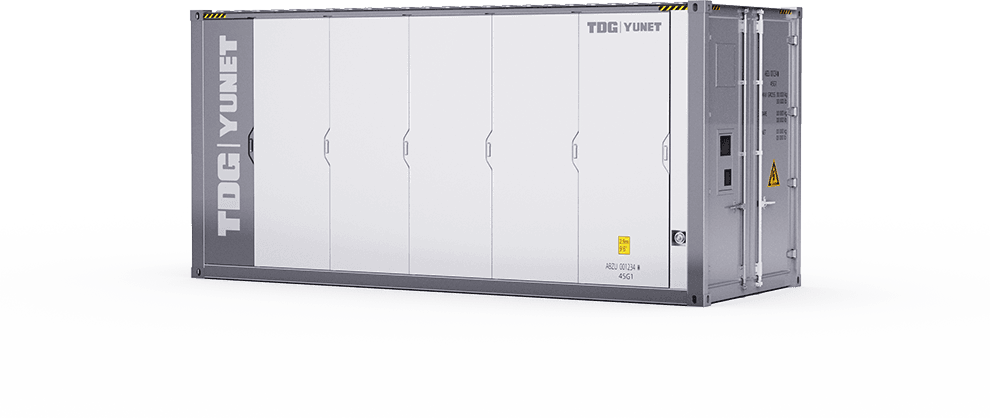

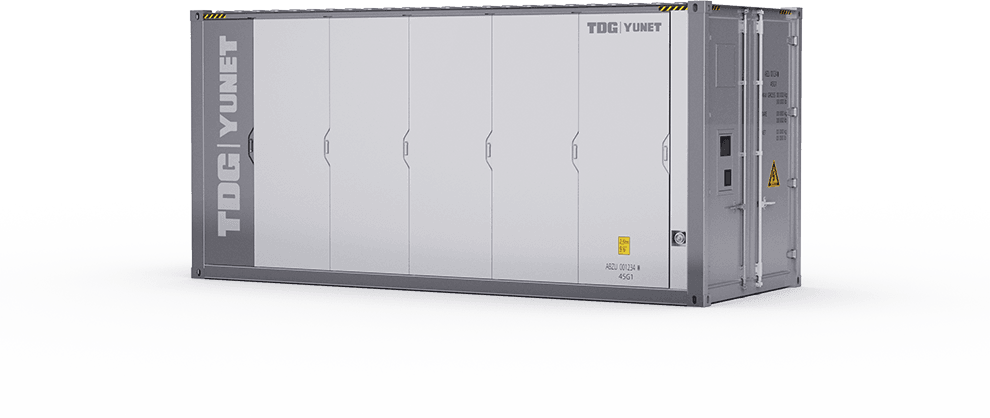

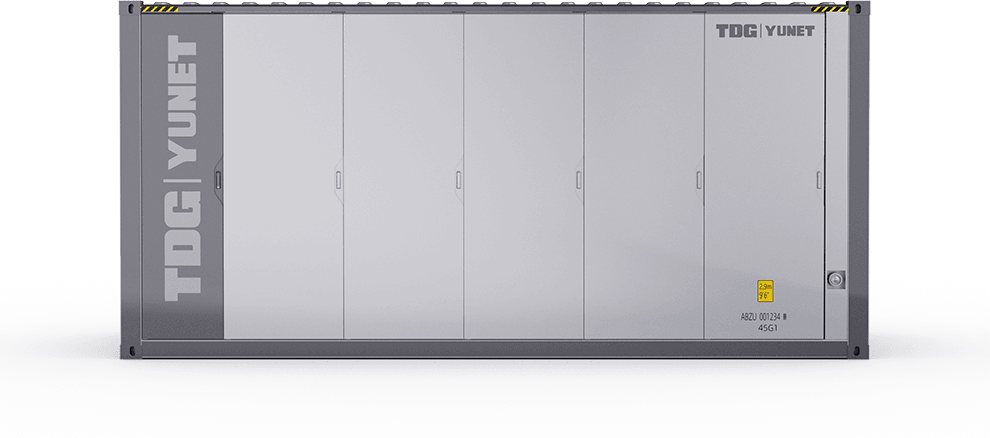

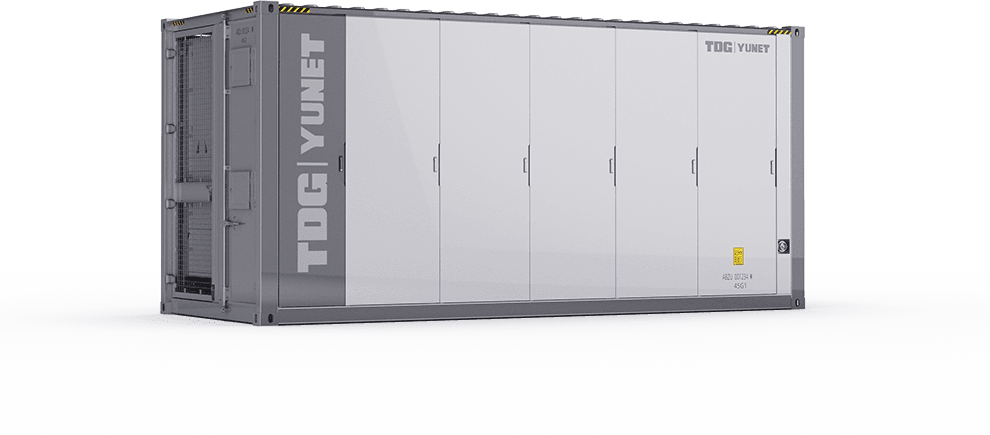

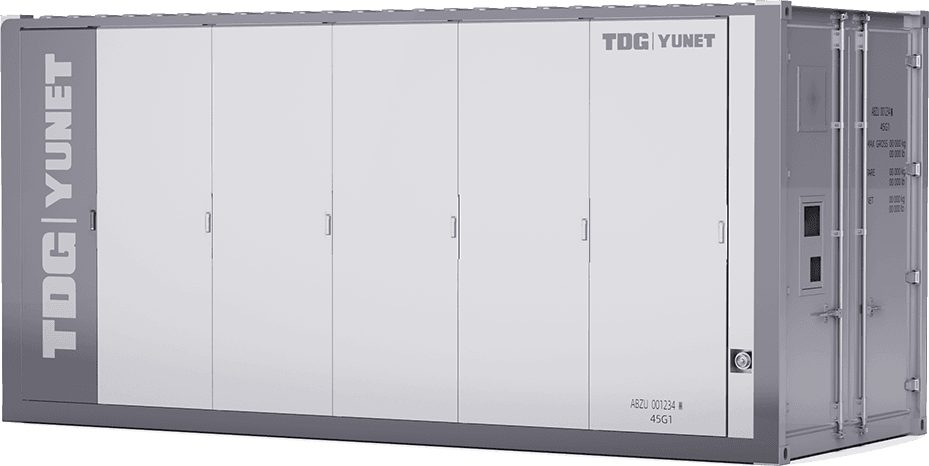

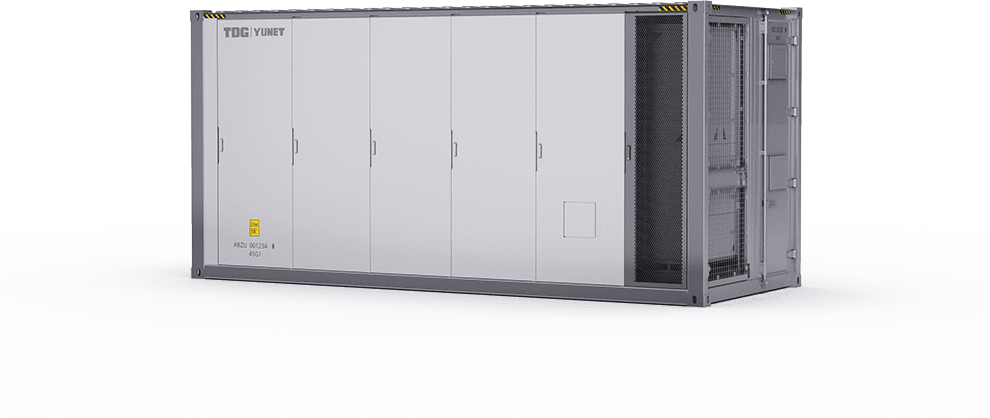

UE-L5015 C& IDistributed Liquid Cooling Outdoor Cabinet
DC DATA
| Cell Type | LFP 314Ah |
| Assembly Method | 1P104S |
| System Configuration | 12P416S |
| System Capacity | 5015.96 kWh |
| System Power | 2508 kW |
| Nominal Voltage | 1331 V |
| Voltage Range | 1164.8–1497.6 V |
| Auxiliary Power | 3P+N 400Vac / 50kVA |
AC DATA
| Dimensions (WDH) | 6058*2438*2896 mm |
| Weight | Approx. 43 T |
| Protection Rating (IP Code) | IP54 |
| Operating Temperature Range | -20 ~ +50 ℃ |
| Operating Humidity Range | 0 ~ 95% |
| Operating Altitude | ≤ 2000 m |
| Battery Thermal Management | Liquid Cooling |
| Fire Protection System | Aerosol |
| System Communication Interface | RS485 / Ethernet / CAN |
| System Communication Protocol | Modbus RTU / Modbus TCP / CAN |
