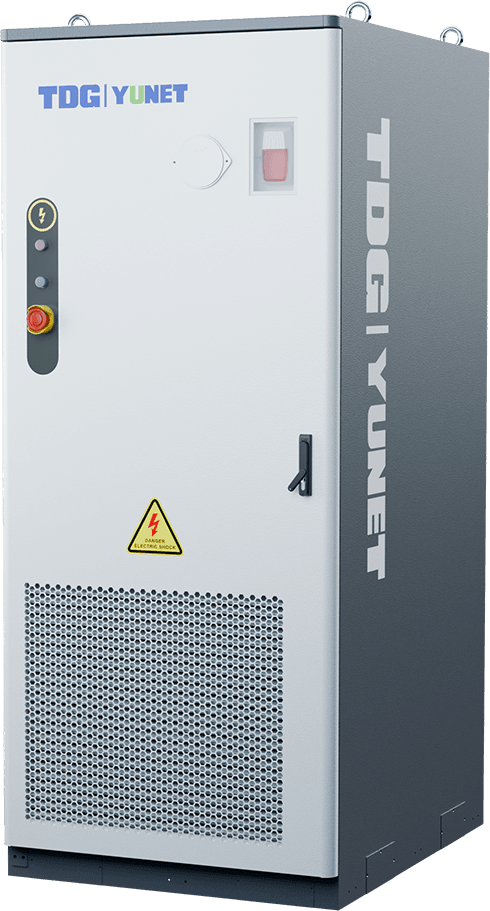

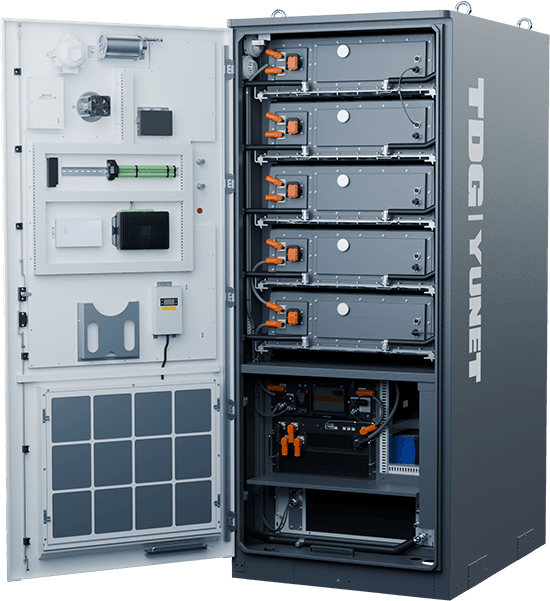

UE-L261 C&I Distributed Liquid Cooling Outdoor Cabinet
Advantage:
- UE-L261 energy storage cabinet is a kind of high-efficiency and environmentally friendly energy storage system, which is widely used in many fields such as electric power, electronics and energy.
DC DATA
| Cell Type | 314Ah(LFP) |
| PACK Configuration | 1P52S |
System Configuration | 1P260S |
Rated Capacity | 261 kWh |
| Nominal Voltage | 832 V |
| Voltage Range | 650–949 V |
| PACK Protection Level | IP67 |
| Cooling Method | Liquid Cooling |
| BMS Communication Interface | CAN, RS-485, Daisy Chain |
AC DATA
| AC Rated Power | 125 kW |
| AC Maximum Power | 150 kW |
| AC Current Distortion Rate | <3% |
| AC Rated Voltage/Phase | 400 V/3P4W |
| Grid Voltage Range | 300–460 V |
| Power Factor | >0.99 |
| Adjustable Power Factor Range | -1 to 1 |
| Rated Grid Frequency | 50 Hz/60 Hz |
GENERAL DATA
| Dimensions (WDH) | 980*1300*2325 mm |
| Weight | ~2.7 t |
| Rated Capacity | 261 kWh |
| Protection Level | IP54 |
| Operating Temperature Range | -20 to 60°C |
| Operating Humidity Range | 25–85% |
| Maximum Operating Altitude | 3000 m (Derating above 3000 m) |
| Battery Temperature Control Method | Liquid Cooling |
| Converter Cooling Method | Air Cooling |
| Fire Protection System | Aerosol |
| Communication Interface/ Protocol | Ethernet, 4G |
